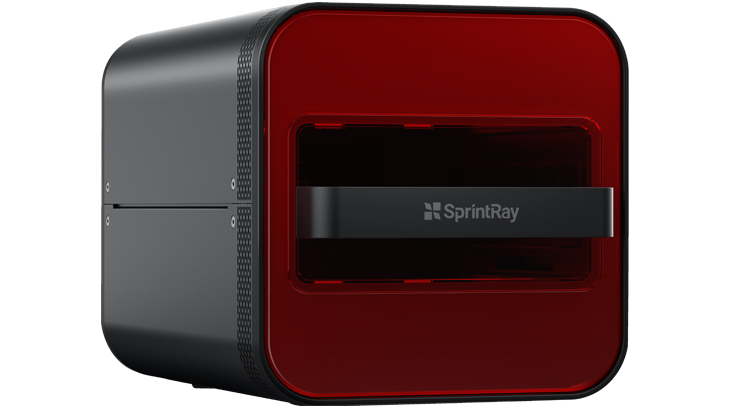

SprintRay NanoCure Post-Curing System

SprintRay NanoCure post-curing system

Engineered to enhance dental material properties, the cutting-edge SprintRay NanoCure™ post-curing device ensures high clinical performance. Specifically designed to complement SprintRay’s biomaterial innovation, the NanoCure stands out for its speed, power, and compact design.
Request a quote

Explore other SprintRay 3D printing products:

Product Details
Benefits
Specifications
Resources
Experience the NanoCure advantage as it efficiently cures 3D printed dental appliances. Cure up to 4 dental models in less than 2 minutes, optimizing mechanical performance, ensuring full biocompatibility and using 50% less counter space than SprintRay ProCure 2.

The SprintRay NanoCure post-curing system delivers:

  • High-output, dual-wavelength 385/365 nm LEDs
  • Uniform and consistent light exposure with a 95% light uniformity
  • Thermal control for accelerated heating, reaching 60°C in 2 minutes
  • 2X faster curing than SprintRay ProCure 2
  • Dual wavelength cures throughout the entirety of the part: The shorter wavelength cures the surface while the longer reaches deeper within
  • Consistent mechanical properties throughout the part
  • More consistent shades
  • Better surface finish
Heating technology:
  • 180W heater with 100°C max temp
  • Automatic warmup with job handoff
  • Rapid air exchange to cool device exterior

Curing volume/envelope:
  • Capacity for up to 4 full arch models
  • 4.5 x 4.5 x 1.5 in
  • 11.4 x 11.4 x 3.8 cm

Curing speed (4-arch max capacity):
  • Dental models: 2 mins
  • Surgical guides: 4 mins
  • Night guards: 4 mins
  • Cemented restorations: 5 mins
  • Hybrid dentures: 5 mins
  • Conventional dentures: 15 mins

Connectivity:
  • Dual-band 2.4/5 GHz Wi-Fi chipset
  • Local network via ethernet cable
  • USB-C port

Unit dimensions (W x D x H):
  • 7.9 x 8 x 13.5 in
  • 20 x 20.5 x 34.5 cm
