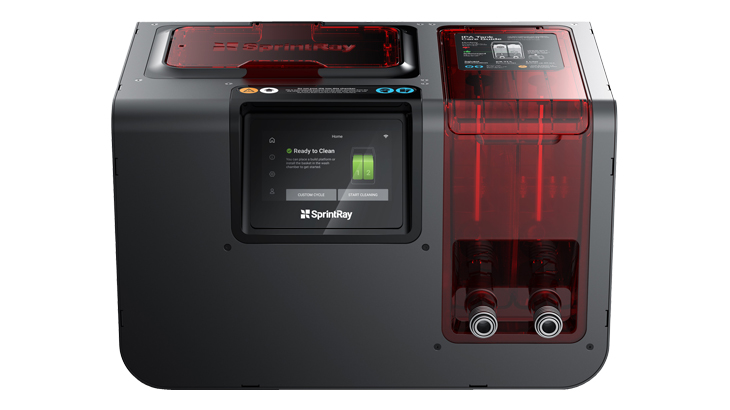

SprintRay ProWash S can clean and dry your 3D printed dental models in just 9 minutes. The cleaning system is designed to be fast, reliable and connected.
Request a quote
ProWash S from SprintRay simplifies clinical 3D printing workflows using cloud connectivity to automatically pass print job information from SprintRay 3D printers to SprintRay post-curing machines. A 5" onboard computer features contextual, step-by-step instructions for everything from daily tasks to scheduled maintenance. Improved wash performance and a new drying fan and ventilation system finish each cycle for dental appliances that are bone dry and ready to cure.
Solvent, managed: Guided maintenance helps maximize and recycle IPA.
Big screen, big power: A 5" touchscreen helps streamline your everyday workflow.
Wash your way: Create custom cleaning cycles for maximum workflow control.
Drying performance: A drying fan channels air directly into the wash chamber to prepare parts for curing.
Automatic updates: Receive software and wash profile updates automatically.
Washing technology: Patented Mechanical Jetting Technology, automatic 2-stage wash and dry cycle, precision 10,000 rpm propeller
Solvent management: Visual representation of solvent usage and precalibrated hydrometers, capacitive solvent level sensor
Wash volume/envelope: Platform envelope – 7 x 5 x 3 in, 17 x 12.7 x 7.6 cm; basket envelope – 7 x 5 x 5 in, 17 x 12.7 x 12.7 cm
Solvent compatibility: Isopropyl alcohol 91%, Isopropyl alcohol 99%
Solvent capacity: Min 1 L per reservoir, max 2 L per reservoir
User controls: 5-inch color touchscreen, predefined wash/dry preset, user-programmable wash/dry option
Connectivity: Dual-band 2.4/5 GHz Wi-Fi chipset; local network via Ethernet cable
USB-C port
Safety sensors: Automatic start/stop sensors, platform vs basket detection, fill level sensor
Unit dimensions (W x D x H): 12 x 12 x 18 in, 30 x 30 x 46 cm
Shipping weight & dimensions: 14 x 14 x 20 in, 36 x 36 x 50 cm, 45 lb / 20.4 kg
Power requirement: 100-240 V (via DC adapter)
SprintRay ProWash S technical specifications
