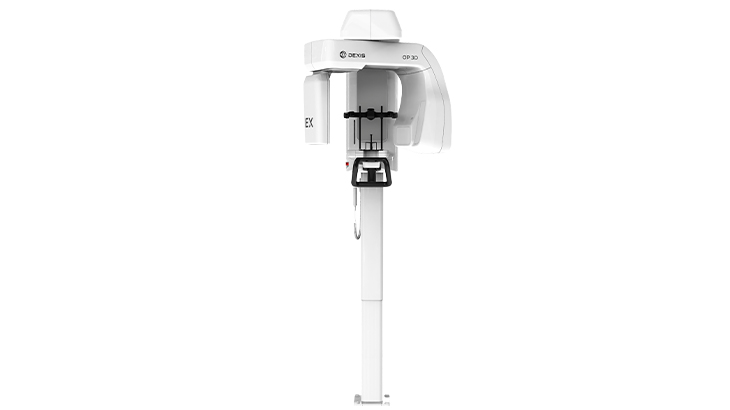

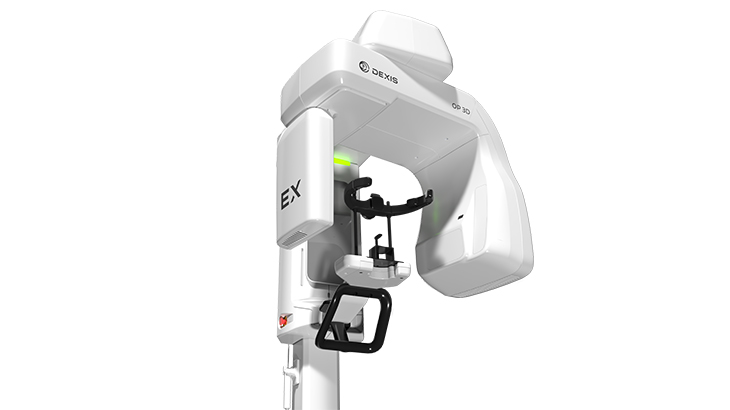

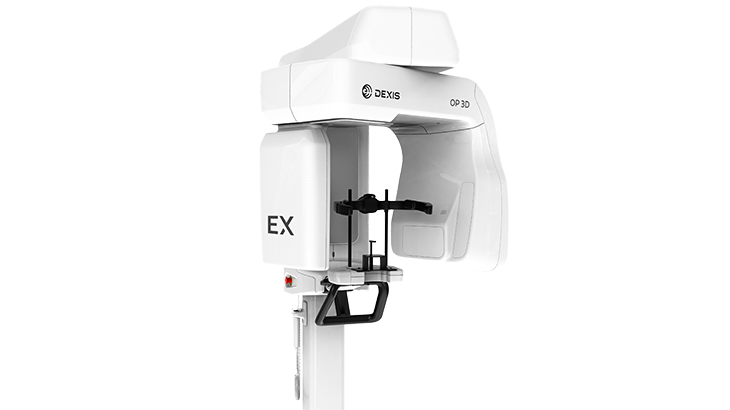

DEXIS Orthopantomograph™ OP 3D™ EX

The DEXIS Orthopantomograph OP 3D EX Implant placement allows you to expand your clinical capabilities by supporting multiple views of your patient scans, presurgical assessments of anatomy and the placement of accurate and precise implants. The 3D imaging platform supports offering the following treatments with the listed features:

• Root canals: With its dedicated endo resolution (80 μm) and precise scan positioning that can easily be centered on an individual tooth, the OP 3D EX has been optimized to help visualize the small details, which can be critical to endodontic diagnostics and planning.

• Gum disease: The OP 3D EX flexible field of view options can help you to visualize gum issues and lesions, as well as evaluate sinuses and nerve canals. A three-dimensional insight can uncover early signs of periodontal issues that conventional X-rays might overlook.

• Restorative: You can capture high-resolution 3D scans to support diagnostic clarity for treatment planning, surgical and prosthodontic applications of implant dentistry. The OP 3D EX along with DTX Studio Clinic supports the visualization by allowing practitioners to merge 3D data with intraoral surface scans for a complete visualization of the patient anatomy.

• Airway analysis: With its optional 10 x 15 cm large field of view scan, the OP 3D EX along with DTX Studio Clinic can support the evaluation of the airway in one quick scan. This can help you to detect possible airway issues that can be relieved through treatments like mandibular advancement devices, orthodontic expansion or orthognathic surgery.

• ​TMJ analysis: You can ensure proper joint positioning prior to orthodontic planning and evaluate condylar and occlusal changes. The OP 3D EX bilateral visualization of the temporomandibular joint allows you to assess the position within the fossa, degenerative changes to the hard tissue, and to assess the vertical dimension on larger prosthetic cases.

With the DEXIS OP 3D EX, you can capture fast, accurate images in four easy steps:

• Quickly find the right position while helping your patient remain still during exposure with a newly designed head
• Quickly analyze and visually choose your area of interest with a user-friendly interface
• Preview and modify an area of interest without having to reposition the patient or even opening the viewing software with the optional scout
• Capture an accurate 3D scan* quickly and easily with on average, 30% faster overall scan times and 50% faster low dose scan times

In addition, you can:

• Tailor your images to your diagnostic needs
• Achieve optimal diagnostic output at the lowest reasonable dose with six present fields of view, 66 customizable volume sizes, an adjustable height, and low-dose standard, endo and high resolutions


*Compared to the OP 3D. Data on file.

The OP 3D EX has six preset fields of view*:

• 5 x 5 cm: Localized diagnostics, endodontic evaluation, single implant sites and pathoses
• 6 x 9 cm: Single arch, implant planning, surgical guide creation, and impacted canines
• 8 x 8 cm: Compact dual arch, mandibular and maxillary treatment planning of dental implants
• 10 x 10 cm: Complete dentition, mandible and maxilla with third molar region, and lower maxillary sinuses – ideal for multiple implants or periodontal evaluation
• 10 x 11 cm:
• Enhanced third molar assessment, ideal for abnormal or impacted third molars and larger jaws
• Expanded diameter for horizontally impacted or distally presenting third molars
• 10 x 15 cm**: Dentition and bilateral TMJ, maxillofacial complex/mandible and maxilla, bilateral TMJ, sinus and pharyngeal airway

*All fields of view (FOV) displayed are height x diameter in centimeters
**10 x 15 cm optional field of view size
