Designed to easily capture intraoral X-ray images that can be viewed, stored and manipulated for diagnostic use by today’s modern dental practice, SensorX intraoral sensor, combined with ScanX, is the ideal complement for a complete hybrid solution.
Request a quote
Enjoy ease of placement with image quality and comfort in mind. Thanks to the rounded corners, the Air Techniques SensorX intraoral sensor can be positioned closer to the tooth, helping to produce a sharper image. SensorX is the ideal complement to PSPs in endodontics, implantology and conservative dentistry.

  • Ensures the fast transmission of high-resolution images via CsI CMOS technology
  • Reduces scatter and concentrates light collection, dramatically enhancing image quality
  • Theoretical resolution of 26.3 LP/mm
  • Special filters and versatile image processing (VisionX, DBSWIN or VistaEasy)
  • VisionX imaging software for capturing, storing and processing images
  • Standalone or in the office network imaging app for iPad (VisionX Mobile Connect)
  • Connection to third-party imaging software via VistaEasy TWAIN interface
  • High level of detail – reliable diagnostics
  • Quick image availability – efficient workflow
  • White SensorX housing easier to see, place and position within the mouth

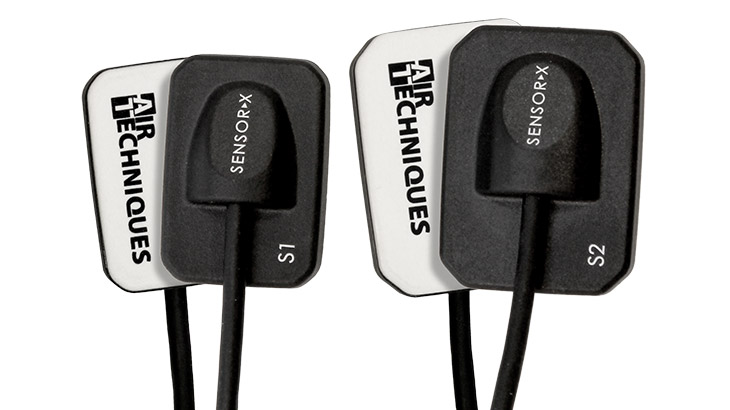

  • Available in size #1 and size #2
  • Plug & play portability across multiple operatories
  • Cost-effective, versatile and dependable
Sensor size 1
  • Sensor dimensions (L x W x D): 1.54 x 1.07 x .25 in; 39.0 x 27.4 x 6.3 mm
  • Number of pixels: 1,050 x 1,580 = 1,659,000

Sensor size 2
  • Sensor dimensions (L x W x D): 1.76 x 1.30 x .25 in
  • Number of pixels: 1,368 x 1,896 = 2,593,728 44.7 x 33.1 x 6.3 mm

Sensor size 1 and sensor size 2
  • Pixel size (µm): 19 x 19
  • Theoretical resolution (LP/mm): 26.3
  • Effective resolution (LP/mm): 20.0
  • Cable length: 99 in/2.51 m
  • Storage: Wall- or pipe-mounted
  • Greyscale: 16 bit (65,536)
  • PC connection: Direct USB (2.0 or 3.0)
  • Optional USB extension: 3.28 ft/1m (included)*
  • *In the case of a further extension, the use of an active USB hub is recommended
